Product Overview

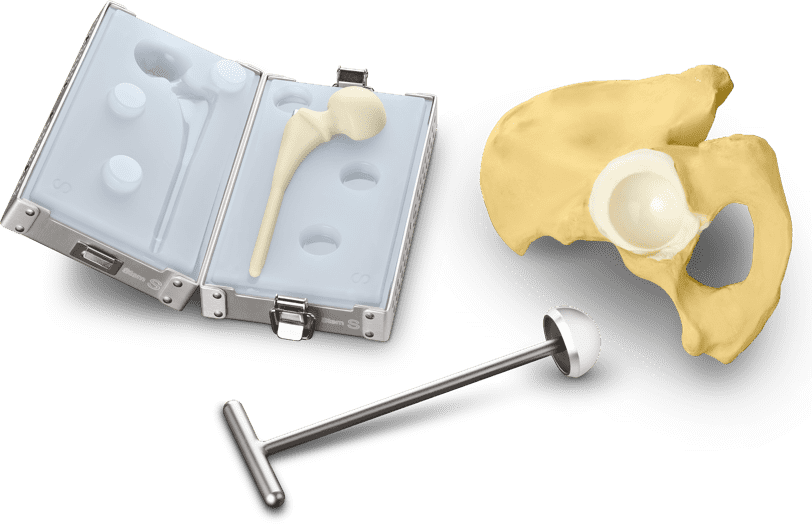

The RepliCase Hip is used for molding a temporary hip prosthesis during surgery and is intended to allow surgeons to model a temporary hip prosthesis in a simpler way.

Product Features

Slide Total hip spacer design helps provide a smoothly articulated surface intended to reduce wear particles and improve hip motion. The RepliCase Hip is made of medical grade silicone which allows for repeated autoclave cycles. 3 available sizes (S,M,L).

Dimensions

Size
S
M
L
Acetabular size (mm)
50,52
54
56 or above
Spacer Cup I.D. (mm)
46
49
52
Head Diameter (mm)
42
45
48
Offset (mm)
36
39
43
Head Neck Angle
130o
130o
130o
Stem Length (mm)
145
145
145
Distal Diameter (mm)
9
10
11
